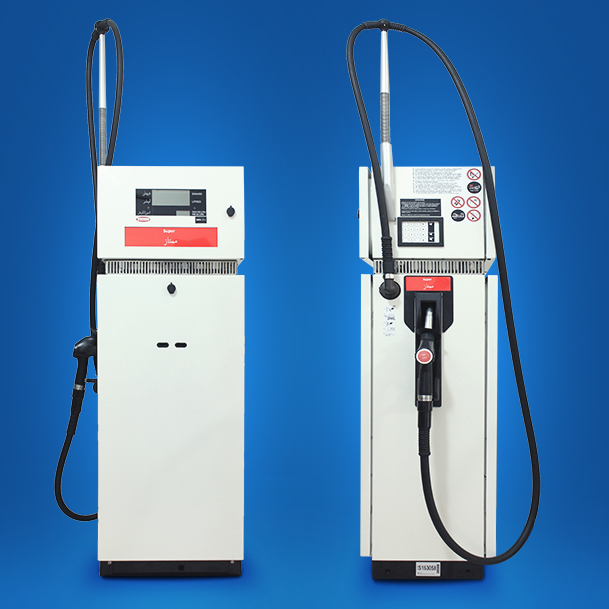

Quantium 110

Base models
• Standard speed (40 l/min)
• High speed (80 l/min)
• Very high speed (130 l/min)

Flow rates depend on model, underground site layout, site altitude, ambient temperature and selected options.

Optional features
• Automatic temperature compensation
• Electronic calibration
• Programming switch
• Single-phase motor
• Preset functions via push buttons or keypad
• Product indication lights
• IR remote control compatible
• Mechanical totalizers on meter
• Anti-magnetic electro-mechanical totalizers (single and double-sided)
• 40/80 l/min speed selection
• Several hydraulic inlet options
• Submersible pump
• Ground frame
• Sight glass
• Breakaway coupling
• Low temperature kit
• Leak plate
• Marina prepared
• Stainless steel cladding panels
• Customized livery of complete dispenser
• Fuel theft prevention

For more detailed information on available options, please contact us.

 Environmental conditions
• Ambient temperature: -25°C to +55°C
• Cold climate: -40°C to +55°C (optional)
• Temperature of fluid: -25°C to +25°C
• Viscosity of fluid: < 10-4 m2/s
• Relative humidity: 5% to 95%
• Altitude: from sea level to 2,000 m
